1. Chemical Structure and Molecular Device
1.1 Synthesis and Molecular Style

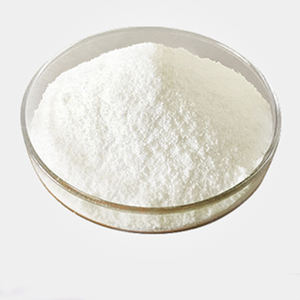

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), frequently referred to as naphthalene sulfonate superplasticizer, is an artificial water-reducing admixture commonly used in high-performance concrete to boost flowability without endangering structural stability.
It is produced through a multi-step chemical process involving the sulfonation of naphthalene with concentrated sulfuric acid to form naphthalene sulfonic acid, followed by formaldehyde condensation under controlled temperature and pH conditions to produce a polymer with duplicating fragrant devices connected by methylene bridges.
The resulting particle includes a hydrophobic naphthalene foundation and multiple hydrophilic sulfonate (-SO FIVE â») groups, developing a comb-like polyelectrolyte structure that enables solid communication with concrete fragments in liquid settings.
This amphiphilic architecture is central to its spreading feature, enabling the polymer to adsorb onto the surface of concrete hydrates and give electrostatic repulsion in between fragments.
The level of sulfonation and polymerization can be adjusted throughout synthesis to customize the molecular weight and cost density, straight influencing diffusion efficiency and compatibility with various cement types.
1.2 Dispersion System in Cementitious Systems
When included in fresh concrete, NSF features primarily with electrostatic repulsion, a mechanism unique from steric limitation used by more recent polycarboxylate-based superplasticizers.
Upon mixing, the hydrophobic naphthalene rings adsorb onto the favorably charged sites of tricalcium silicate (C â S) and other concrete phases, while the adversely charged sulfonate groups extend right into the pore remedy, producing a solid adverse surface area potential.
This creates an electrical dual layer around each concrete fragment, triggering them to push back each other and counteracting the natural tendency of fine particles to flocculate due to van der Waals pressures.
Because of this, the entrapped water within flocs is launched, boosting the fluidity of the mix and enabling substantial reductions in water web content– usually 15– 25%– while preserving workability.
This improved dispersion results in a much more uniform microstructure, lowered porosity, and boosted mechanical toughness growth with time.
However, the efficiency of NSF lessens with extended mixing or heats as a result of desorption and depression loss, a limitation that influences its application in long-haul transportation or warm climates.
( Naphthalene Sulfonate Superplasticizer)
2. Efficiency Characteristics and Engineering Perks
2.1 Workability and Flow Improvement
One of one of the most prompt benefits of naphthalene sulfonate superplasticizer is its capability to considerably boost the slump of concrete, making it very flowable and very easy to area, pump, and combine, particularly in densely reinforced frameworks.
This enhanced workability permits the construction of complex architectural forms and decreases the need for mechanical vibration, lessening labor costs and the threat of honeycombing or gaps.
NSF is specifically reliable in generating self-consolidating concrete (SCC) when used in mix with viscosity-modifying agents and other admixtures, guaranteeing full mold filling without segregation.
The degree of fluidity gain relies on dosage, generally varying from 0.5% to 2.0% by weight of concrete, past which reducing returns and even retardation might take place.
Unlike some organic plasticizers, NSF does not introduce extreme air entrainment, protecting the density and durability of the final product.
2.2 Strength and Durability Improvements
By enabling lower water-to-cement (w/c) proportions, NSF plays a vital function in enhancing both early and long-term compressive and flexural stamina of concrete.
A minimized w/c proportion lowers capillary porosity, leading to a denser, less absorptive matrix that withstands the access of chlorides, sulfates, and wetness– crucial consider stopping support deterioration and sulfate assault.
This better impermeability prolongs service life in hostile atmospheres such as aquatic structures, bridges, and wastewater therapy centers.
In addition, the uniform diffusion of cement bits promotes more full hydration, accelerating strength gain and lowering shrinking splitting dangers.
Studies have actually shown that concrete integrating NSF can achieve 20– 40% higher compressive strength at 28 days contrasted to regulate blends, depending on mix style and curing problems.
3. Compatibility and Application Factors To Consider
3.1 Communication with Cement and Supplementary Products
The efficiency of naphthalene sulfonate superplasticizer can vary dramatically depending upon the structure of the concrete, especially the C FOUR A (tricalcium aluminate) material and antacid degrees.
Cements with high C SIX An often tend to adsorb even more NSF as a result of more powerful electrostatic communications, possibly calling for greater does to attain the preferred fluidness.
Similarly, the existence of supplementary cementitious materials (SCMs) such as fly ash, slag, or silica fume influences adsorption kinetics and rheological actions; as an example, fly ash can complete for adsorption sites, modifying the effective dosage.
Blending NSF with various other admixtures like retarders, accelerators, or air-entraining representatives requires careful compatibility testing to avoid negative communications such as quick slump loss or flash collection.
Batching series– whether NSF is included previously, throughout, or after blending– likewise influences diffusion performance and must be standard in large-scale operations.
3.2 Environmental and Handling Elements
NSF is offered in fluid and powder kinds, with fluid formulas providing easier dosing and faster dissolution in mixing water.
While typically stable under regular storage problems, extended direct exposure to freezing temperatures can cause precipitation, and high warmth might weaken the polymer chains in time.
From an environmental perspective, NSF is taken into consideration reduced poisoning and non-corrosive, though appropriate handling techniques must be followed to avoid inhalation of powder or skin irritation.
Its production entails petrochemical derivatives and formaldehyde, elevating sustainability issues that have actually driven research right into bio-based alternatives and greener synthesis paths.
4. Industrial Applications and Future Expectation
4.1 Use in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is thoroughly made use of in precast concrete production, where accurate control over setup time, surface area coating, and dimensional accuracy is necessary.
In ready-mixed concrete, it makes it possible for long-distance transportation without compromising workability upon arrival at construction sites.
It is likewise a vital component in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where exceptionally reduced w/c ratios are required to achieve compressive strengths exceeding 100 MPa.
Tunnel cellular linings, high-rise buildings, and prestressed concrete components benefit from the improved sturdiness and architectural performance offered by NSF-modified mixes.
4.2 Fads and Difficulties in Admixture Technology
In spite of the introduction of advanced polycarboxylate ether (PCE) superplasticizers with remarkable slump retention and lower dosage needs, NSF stays widely utilized due to its cost-effectiveness and proven efficiency.
Ongoing study concentrates on crossbreed systems integrating NSF with PCEs or nanomaterials to enhance rheology and toughness growth.
Initiatives to boost biodegradability, decrease formaldehyde discharges during manufacturing, and boost compatibility with low-carbon concretes reflect the market’s change toward lasting building products.
Finally, naphthalene sulfonate superplasticizer represents a foundation modern technology in modern-day concrete engineering, bridging the space in between standard techniques and progressed material efficiency.
Its ability to change concrete into a very convenient yet resilient composite remains to sustain worldwide facilities advancement, even as next-generation admixtures evolve.
