1. Essential Framework and Material Structure
1.1 The Nanoscale Design of Aerogels

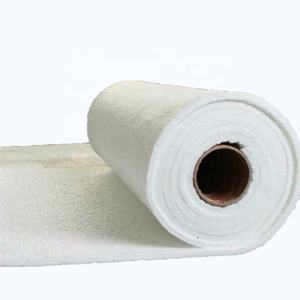

(Aerogel Blanket)
Aerogel coverings are advanced thermal insulation products built on a special nanostructured framework, where a solid silica or polymer network spans an ultra-high porosity volume– generally exceeding 90% air.
This framework originates from the sol-gel process, in which a liquid forerunner (commonly tetramethyl orthosilicate or TMOS) undergoes hydrolysis and polycondensation to develop a damp gel, adhered to by supercritical or ambient pressure drying to remove the fluid without collapsing the delicate porous network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in diameter) creating pores on the scale of 10– 50 nm, tiny enough to suppress air particle movement and hence lessen conductive and convective warmth transfer.
This sensation, called Knudsen diffusion, dramatically minimizes the effective thermal conductivity of the product, commonly to worths between 0.012 and 0.018 W/(m · K) at room temperature– amongst the most affordable of any solid insulator.
Regardless of their low density (as low as 0.003 g/cm Âł), pure aerogels are naturally weak, demanding support for useful use in adaptable covering type.
1.2 Reinforcement and Compound Style
To overcome fragility, aerogel powders or monoliths are mechanically incorporated into fibrous substrates such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that keeps extraordinary insulation while acquiring mechanical toughness.
The strengthening matrix offers tensile stamina, versatility, and handling resilience, making it possible for the material to be reduced, curved, and mounted in complicated geometries without significant efficiency loss.
Fiber material typically varies from 5% to 20% by weight, thoroughly balanced to reduce thermal connecting– where fibers carry out heat across the blanket– while making sure architectural integrity.
Some advanced styles include hydrophobic surface therapies (e.g., trimethylsilyl teams) to stop moisture absorption, which can degrade insulation efficiency and promote microbial development.
These modifications allow aerogel coverings to keep steady thermal residential properties also in damp settings, expanding their applicability beyond regulated lab conditions.
2. Manufacturing Processes and Scalability

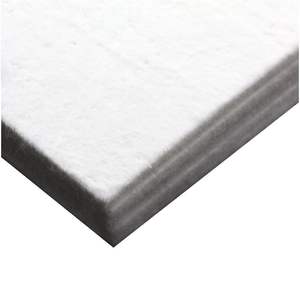

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel coverings starts with the formation of a damp gel within a coarse floor covering, either by fertilizing the substrate with a fluid precursor or by co-forming the gel and fiber network all at once.
After gelation, the solvent need to be removed under problems that protect against capillary stress from breaking down the nanopores; historically, this needed supercritical CO two drying out, a pricey and energy-intensive procedure.
Current breakthroughs have allowed ambient pressure drying via surface adjustment and solvent exchange, dramatically minimizing manufacturing expenses and enabling continual roll-to-roll production.
In this scalable procedure, long rolls of fiber mat are constantly coated with forerunner service, gelled, dried out, and surface-treated, enabling high-volume output ideal for industrial applications.
This change has actually been essential in transitioning aerogel blankets from specific niche lab materials to commercially practical items utilized in building and construction, energy, and transport sectors.
2.2 Quality Assurance and Performance Uniformity
Making sure uniform pore structure, consistent density, and reliable thermal performance throughout huge manufacturing batches is crucial for real-world implementation.
Producers utilize strenuous quality control actions, consisting of laser scanning for thickness variant, infrared thermography for thermal mapping, and gravimetric analysis for wetness resistance.
Batch-to-batch reproducibility is important, specifically in aerospace and oil & gas markets, where failing because of insulation failure can have serious repercussions.
In addition, standard screening according to ASTM C177 (warm flow meter) or ISO 9288 makes certain exact reporting of thermal conductivity and makes it possible for reasonable comparison with conventional insulators like mineral wool or foam.
3. Thermal and Multifunctional Characteristic
3.1 Superior Insulation Across Temperature Varies
Aerogel coverings show outstanding thermal performance not only at ambient temperatures but likewise across extreme ranges– from cryogenic conditions listed below -100 ° C to heats going beyond 600 ° C, relying on the base product and fiber kind.
At cryogenic temperature levels, standard foams may break or shed performance, whereas aerogel blankets stay versatile and keep reduced thermal conductivity, making them suitable for LNG pipelines and tank.
In high-temperature applications, such as commercial furnaces or exhaust systems, they supply reliable insulation with lowered density contrasted to bulkier choices, saving room and weight.
Their reduced emissivity and capability to mirror induction heat further improve performance in radiant barrier configurations.
This vast functional envelope makes aerogel blankets distinctly versatile amongst thermal management options.
3.2 Acoustic and Fire-Resistant Qualities
Beyond thermal insulation, aerogel blankets show noteworthy sound-dampening residential or commercial properties due to their open, tortuous pore structure that dissipates acoustic energy with viscous losses.
They are increasingly utilized in automobile and aerospace cabins to reduce environmental pollution without including considerable mass.
Furthermore, most silica-based aerogel blankets are non-combustible, achieving Course A fire ratings, and do not release poisonous fumes when revealed to fire– critical for developing safety and public framework.
Their smoke thickness is extremely reduced, enhancing visibility throughout emergency situation evacuations.
4. Applications in Market and Arising Technologies
4.1 Power Performance in Building and Industrial Equipment
Aerogel coverings are transforming energy effectiveness in style and industrial engineering by making it possible for thinner, higher-performance insulation layers.
In structures, they are utilized in retrofitting historic structures where wall density can not be enhanced, or in high-performance façades and windows to reduce thermal bridging.
In oil and gas, they protect pipes bring warm liquids or cryogenic LNG, reducing energy loss and avoiding condensation or ice formation.
Their lightweight nature also decreases architectural tons, specifically valuable in overseas platforms and mobile devices.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel blankets secure spacecraft from extreme temperature changes during re-entry and guard sensitive instruments from thermal biking in space.
NASA has actually employed them in Mars vagabonds and astronaut fits for easy thermal law.
Automotive manufacturers integrate aerogel insulation right into electrical automobile battery packs to prevent thermal runaway and enhance safety and efficiency.
Customer items, including outdoor clothing, shoes, and camping gear, now feature aerogel cellular linings for exceptional heat without bulk.
As manufacturing costs decrease and sustainability improves, aerogel coverings are poised to end up being mainstream options in international efforts to minimize power usage and carbon exhausts.
To conclude, aerogel coverings represent a convergence of nanotechnology and practical design, delivering unequaled thermal efficiency in an adaptable, long lasting style.
Their ability to save power, space, and weight while preserving security and environmental compatibility settings them as vital enablers of sustainable technology throughout varied fields.
