Intro to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic material that has actually gained extensive recognition for its outstanding thermal conductivity, electric insulation, and mechanical security at elevated temperature levels. With a hexagonal wurtzite crystal framework, AlN shows an one-of-a-kind mix of residential or commercial properties that make it the most suitable substrate product for applications in electronic devices, optoelectronics, power modules, and high-temperature environments. Its capability to successfully dissipate warmth while keeping excellent dielectric stamina settings AlN as a superior alternative to traditional ceramic substratums such as alumina and beryllium oxide. This post checks out the fundamental qualities of aluminum nitride porcelains, looks into manufacture strategies, and highlights its essential functions throughout innovative technological domain names.

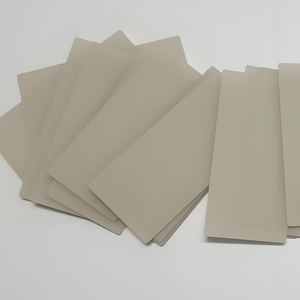

(Aluminum Nitride Ceramics)
Crystal Framework and Basic Feature
The efficiency of light weight aluminum nitride as a substratum product is largely determined by its crystalline framework and innate physical homes. AlN adopts a wurtzite-type latticework composed of alternating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– commonly exceeding 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value considerably goes beyond those of various other extensively used ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN possesses a wide bandgap of roughly 6.2 eV, causing superb electric insulation buildings even at high temperatures. It likewise demonstrates reduced thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an optimum suit for semiconductor gadget packaging. Furthermore, AlN exhibits high chemical inertness and resistance to molten steels, boosting its suitability for severe settings. These consolidated features establish AlN as a top candidate for high-power electronic substratums and thermally handled systems.
Manufacture and Sintering Technologies
Producing premium light weight aluminum nitride porcelains requires precise powder synthesis and sintering strategies to achieve dense microstructures with very little impurities. As a result of its covalent bonding nature, AlN does not conveniently compress with standard pressureless sintering. Consequently, sintering help such as yttrium oxide (Y ₂ O SIX), calcium oxide (CaO), or unusual earth elements are usually contributed to advertise liquid-phase sintering and improve grain limit diffusion.
The manufacture process usually begins with the carbothermal reduction of light weight aluminum oxide in a nitrogen atmosphere to manufacture AlN powders. These powders are then grated, formed using approaches like tape casting or injection molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Warm pressing or spark plasma sintering (SPS) can even more enhance thickness and thermal conductivity by minimizing porosity and promoting grain alignment. Advanced additive manufacturing techniques are likewise being explored to fabricate complex-shaped AlN elements with customized thermal management abilities.
Application in Electronic Packaging and Power Modules
One of one of the most popular uses light weight aluminum nitride porcelains is in electronic product packaging, particularly for high-power devices such as protected entrance bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities boost in contemporary electronic devices, efficient warm dissipation becomes essential to make certain dependability and longevity. AlN substratums offer an ideal option by integrating high thermal conductivity with outstanding electric seclusion, avoiding brief circuits and thermal runaway conditions.
In addition, AlN-based straight bonded copper (DBC) and active steel brazed (AMB) substrates are increasingly employed in power module designs for electric vehicles, renewable energy inverters, and industrial electric motor drives. Contrasted to standard alumina or silicon nitride substrates, AlN offers quicker warmth transfer and better compatibility with silicon chip coefficients of thermal growth, thereby decreasing mechanical stress and boosting total system performance. Continuous study intends to enhance the bonding stamina and metallization strategies on AlN surface areas to further increase its application scope.
Use in Optoelectronic and High-Temperature Gadget
Past digital product packaging, aluminum nitride porcelains play an important duty in optoelectronic and high-temperature applications due to their openness to ultraviolet (UV) radiation and thermal security. AlN is extensively used as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications calling for sterilization, picking up, and optical communication. Its large bandgap and reduced absorption coefficient in the UV variety make it a perfect prospect for supporting aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capability to function reliably at temperatures exceeding 1000 ° C makes it suitable for usage in sensing units, thermoelectric generators, and components subjected to extreme thermal loads. In aerospace and defense sectors, AlN-based sensor bundles are used in jet engine surveillance systems and high-temperature control devices where traditional products would fail. Constant innovations in thin-film deposition and epitaxial growth methods are broadening the capacity of AlN in next-generation optoelectronic and high-temperature incorporated systems.
( Aluminum Nitride Ceramics)
Environmental Stability and Long-Term Reliability
A key factor to consider for any substrate material is its lasting integrity under functional anxieties. Light weight aluminum nitride demonstrates exceptional environmental security contrasted to numerous other ceramics. It is highly resistant to deterioration from acids, alkalis, and molten steels, ensuring durability in aggressive chemical settings. Nonetheless, AlN is susceptible to hydrolysis when subjected to moisture at raised temperatures, which can weaken its surface and minimize thermal efficiency.
To alleviate this issue, safety coverings such as silicon nitride (Si ₃ N ₄), light weight aluminum oxide, or polymer-based encapsulation layers are frequently put on improve moisture resistance. Additionally, mindful sealing and packaging techniques are applied during tool assembly to preserve the honesty of AlN substrates throughout their service life. As ecological laws end up being extra stringent, the safe nature of AlN likewise places it as a recommended choice to beryllium oxide, which presents health risks during handling and disposal.
Final thought
Aluminum nitride ceramics represent a course of innovative products distinctively matched to deal with the expanding needs for effective thermal administration and electrical insulation in high-performance digital and optoelectronic systems. Their phenomenal thermal conductivity, chemical stability, and compatibility with semiconductor modern technologies make them the most perfect substrate product for a large range of applications– from vehicle power components to deep UV LEDs and high-temperature sensing units. As manufacture technologies remain to develop and cost-effective production methods grow, the fostering of AlN substratums is expected to increase considerably, driving technology in next-generation electronic and photonic devices.
