1. Product Basics and Architectural Characteristics of Alumina Ceramics
1.1 Make-up, Crystallography, and Phase Stability

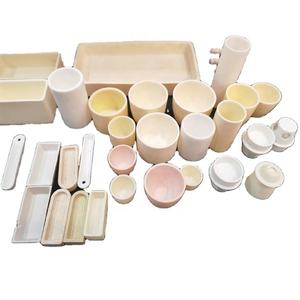

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels produced mostly from aluminum oxide (Al â O FOUR), one of one of the most commonly made use of innovative porcelains due to its exceptional mix of thermal, mechanical, and chemical security.
The leading crystalline stage in these crucibles is alpha-alumina (α-Al two O SIX), which comes from the diamond structure– a hexagonal close-packed plan of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent aluminum ions.
This thick atomic packing results in solid ionic and covalent bonding, providing high melting point (2072 ° C), excellent solidity (9 on the Mohs scale), and resistance to creep and contortion at elevated temperature levels.
While pure alumina is perfect for a lot of applications, trace dopants such as magnesium oxide (MgO) are usually added throughout sintering to hinder grain development and improve microstructural uniformity, thus improving mechanical strength and thermal shock resistance.
The stage purity of α-Al two O six is essential; transitional alumina phases (e.g., γ, Ύ, Ξ) that form at reduced temperature levels are metastable and undergo volume changes upon conversion to alpha phase, possibly bring about splitting or failure under thermal cycling.
1.2 Microstructure and Porosity Control in Crucible Construction
The efficiency of an alumina crucible is profoundly affected by its microstructure, which is established during powder handling, developing, and sintering stages.
High-purity alumina powders (usually 99.5% to 99.99% Al â O â) are formed into crucible types utilizing techniques such as uniaxial pressing, isostatic pushing, or slip spreading, complied with by sintering at temperature levels between 1500 ° C and 1700 ° C.
During sintering, diffusion devices drive bit coalescence, reducing porosity and increasing thickness– preferably accomplishing > 99% academic density to reduce permeability and chemical seepage.
Fine-grained microstructures enhance mechanical toughness and resistance to thermal anxiety, while regulated porosity (in some customized qualities) can boost thermal shock resistance by dissipating strain energy.
Surface coating is additionally vital: a smooth interior surface reduces nucleation websites for unwanted reactions and assists in simple elimination of strengthened materials after handling.
Crucible geometry– consisting of wall surface density, curvature, and base design– is maximized to stabilize warm transfer effectiveness, structural stability, and resistance to thermal slopes during quick home heating or cooling.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Performance and Thermal Shock Behavior
Alumina crucibles are consistently utilized in environments surpassing 1600 ° C, making them essential in high-temperature materials research, metal refining, and crystal development procedures.
They display reduced thermal conductivity (~ 30 W/m · K), which, while limiting heat transfer rates, also offers a level of thermal insulation and aids keep temperature slopes required for directional solidification or zone melting.
An essential difficulty is thermal shock resistance– the ability to endure unexpected temperature level changes without breaking.
Although alumina has a reasonably reduced coefficient of thermal expansion (~ 8 Ă 10 â»â¶/ K), its high rigidity and brittleness make it at risk to fracture when subjected to steep thermal gradients, specifically during fast heating or quenching.
To alleviate this, customers are advised to follow controlled ramping procedures, preheat crucibles progressively, and prevent straight exposure to open up flames or chilly surfaces.
Advanced qualities integrate zirconia (ZrO â) toughening or rated compositions to boost fracture resistance through mechanisms such as stage transformation toughening or residual compressive stress and anxiety generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
Among the defining benefits of alumina crucibles is their chemical inertness toward a large range of liquified steels, oxides, and salts.
They are very resistant to fundamental slags, molten glasses, and many metal alloys, including iron, nickel, cobalt, and their oxides, that makes them ideal for usage in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.
Nevertheless, they are not universally inert: alumina responds with highly acidic fluxes such as phosphoric acid or boron trioxide at heats, and it can be rusted by molten alkalis like sodium hydroxide or potassium carbonate.
Especially important is their communication with light weight aluminum steel and aluminum-rich alloys, which can minimize Al two O five through the response: 2Al + Al â O THREE â 3Al â O (suboxide), bring about pitting and eventual failing.
Likewise, titanium, zirconium, and rare-earth metals display high sensitivity with alumina, forming aluminides or complex oxides that compromise crucible integrity and contaminate the melt.
For such applications, alternative crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are liked.
3. Applications in Scientific Research and Industrial Handling
3.1 Duty in Materials Synthesis and Crystal Development
Alumina crucibles are central to various high-temperature synthesis routes, including solid-state reactions, flux growth, and melt handling of practical ceramics and intermetallics.
In solid-state chemistry, they work as inert containers for calcining powders, manufacturing phosphors, or preparing forerunner materials for lithium-ion battery cathodes.
For crystal growth methods such as the Czochralski or Bridgman methods, alumina crucibles are utilized to contain molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness makes sure very little contamination of the expanding crystal, while their dimensional stability sustains reproducible development problems over extended durations.
In change growth, where single crystals are grown from a high-temperature solvent, alumina crucibles should stand up to dissolution by the change tool– typically borates or molybdates– requiring careful selection of crucible grade and handling criteria.
3.2 Usage in Analytical Chemistry and Industrial Melting Operations
In analytical research laboratories, alumina crucibles are conventional equipment in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where accurate mass dimensions are made under regulated environments and temperature level ramps.
Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing environments make them suitable for such accuracy measurements.
In industrial settings, alumina crucibles are employed in induction and resistance heaters for melting rare-earth elements, alloying, and casting procedures, especially in fashion jewelry, dental, and aerospace component production.
They are additionally made use of in the production of technical porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to stop contamination and ensure uniform home heating.
4. Limitations, Taking Care Of Practices, and Future Product Enhancements
4.1 Operational Restrictions and Ideal Practices for Durability
Despite their robustness, alumina crucibles have distinct operational restrictions that have to be appreciated to make sure safety and security and efficiency.
Thermal shock continues to be the most usual source of failure; therefore, gradual home heating and cooling down cycles are essential, especially when transitioning via the 400– 600 ° C variety where recurring stresses can collect.
Mechanical damages from mishandling, thermal biking, or contact with difficult products can start microcracks that circulate under stress and anxiety.
Cleansing need to be done meticulously– staying clear of thermal quenching or abrasive methods– and used crucibles should be examined for indicators of spalling, discoloration, or deformation before reuse.
Cross-contamination is an additional worry: crucibles utilized for reactive or harmful products must not be repurposed for high-purity synthesis without complete cleansing or must be thrown out.
4.2 Emerging Trends in Compound and Coated Alumina Systems
To extend the abilities of traditional alumina crucibles, scientists are establishing composite and functionally graded materials.
Examples include alumina-zirconia (Al â O FOUR-ZrO â) compounds that enhance strength and thermal shock resistance, or alumina-silicon carbide (Al two O â-SiC) versions that boost thermal conductivity for more consistent home heating.
Surface finishings with rare-earth oxides (e.g., yttria or scandia) are being discovered to develop a diffusion obstacle versus responsive steels, consequently expanding the range of compatible thaws.
Furthermore, additive production of alumina elements is arising, allowing customized crucible geometries with interior channels for temperature tracking or gas flow, opening up brand-new possibilities in procedure control and reactor design.
To conclude, alumina crucibles remain a keystone of high-temperature modern technology, valued for their integrity, purity, and flexibility throughout clinical and industrial domain names.
Their proceeded development with microstructural design and crossbreed material design makes certain that they will certainly remain essential tools in the innovation of materials science, power innovations, and progressed production.
