1. Material Fundamentals and Crystal Chemistry
1.1 Structure and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its exceptional hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks varying in stacking series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technologically relevant.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) lead to a high melting factor (~ 2700 ° C), low thermal development (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC does not have an indigenous lustrous phase, adding to its security in oxidizing and destructive atmospheres up to 1600 ° C.
Its broad bandgap (2.3– 3.3 eV, depending on polytype) likewise grants it with semiconductor homes, allowing twin usage in structural and electronic applications.
1.2 Sintering Obstacles and Densification Strategies
Pure SiC is extremely tough to densify as a result of its covalent bonding and low self-diffusion coefficients, requiring making use of sintering aids or advanced processing strategies.
Reaction-bonded SiC (RB-SiC) is produced by infiltrating permeable carbon preforms with molten silicon, creating SiC in situ; this approach yields near-net-shape components with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert environment, accomplishing > 99% academic density and exceptional mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide additives such as Al Two O FIVE– Y TWO O FOUR, developing a transient fluid that boosts diffusion but may lower high-temperature stamina because of grain-boundary stages.
Warm pressing and stimulate plasma sintering (SPS) use quick, pressure-assisted densification with great microstructures, suitable for high-performance components requiring marginal grain development.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Toughness, Firmness, and Use Resistance
Silicon carbide ceramics show Vickers hardness worths of 25– 30 GPa, 2nd only to diamond and cubic boron nitride among design products.
Their flexural stamina generally varies from 300 to 600 MPa, with fracture sturdiness (K_IC) of 3– 5 MPa · m ONE/ ²– moderate for porcelains but improved through microstructural engineering such as hair or fiber reinforcement.
The combination of high hardness and flexible modulus (~ 410 GPa) makes SiC incredibly immune to rough and erosive wear, outperforming tungsten carbide and solidified steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC components demonstrate life span a number of times much longer than standard options.
Its reduced density (~ 3.1 g/cm FIVE) more adds to use resistance by minimizing inertial pressures in high-speed turning components.
2.2 Thermal Conductivity and Security
Among SiC’s most distinguishing features is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline types, and as much as 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals except copper and aluminum.
This residential property enables efficient heat dissipation in high-power digital substrates, brake discs, and warmth exchanger parts.
Coupled with low thermal expansion, SiC exhibits impressive thermal shock resistance, quantified by the R-parameter (σ(1– ν)k/ αE), where high worths indicate durability to fast temperature changes.

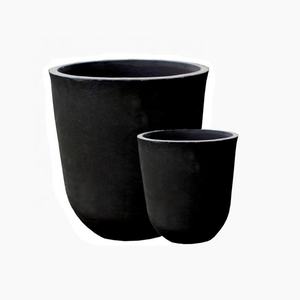

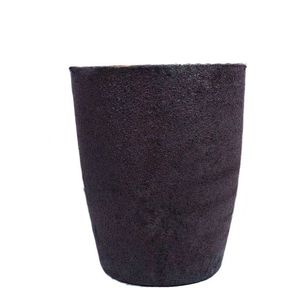

For instance, SiC crucibles can be heated from space temperature to 1400 ° C in minutes without cracking, a task unattainable for alumina or zirconia in comparable conditions.
In addition, SiC preserves strength as much as 1400 ° C in inert atmospheres, making it perfect for furnace fixtures, kiln furnishings, and aerospace components subjected to severe thermal cycles.
3. Chemical Inertness and Corrosion Resistance
3.1 Actions in Oxidizing and Reducing Atmospheres
At temperatures listed below 800 ° C, SiC is very steady in both oxidizing and lowering atmospheres.
Over 800 ° C in air, a protective silica (SiO TWO) layer types on the surface area through oxidation (SiC + 3/2 O ₂ → SiO TWO + CO), which passivates the product and slows down more degradation.
Nevertheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, bring about sped up economic downturn– a vital factor to consider in generator and burning applications.
In reducing ambiences or inert gases, SiC continues to be stable as much as its decay temperature (~ 2700 ° C), without any phase modifications or strength loss.
This stability makes it appropriate for liquified steel handling, such as light weight aluminum or zinc crucibles, where it stands up to wetting and chemical assault far much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is practically inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid combinations (e.g., HF– HNO FIVE).
It shows exceptional resistance to alkalis as much as 800 ° C, though long term direct exposure to thaw NaOH or KOH can trigger surface area etching via development of soluble silicates.
In liquified salt environments– such as those in focused solar energy (CSP) or atomic power plants– SiC demonstrates premium corrosion resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its usage in chemical procedure devices, including shutoffs, linings, and warm exchanger tubes managing hostile media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Uses in Energy, Defense, and Production
Silicon carbide porcelains are integral to numerous high-value industrial systems.
In the power market, they serve as wear-resistant liners in coal gasifiers, elements in nuclear gas cladding (SiC/SiC compounds), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Defense applications consist of ballistic armor plates, where SiC’s high hardness-to-density ratio gives superior security versus high-velocity projectiles compared to alumina or boron carbide at reduced expense.
In manufacturing, SiC is made use of for precision bearings, semiconductor wafer handling elements, and rough blasting nozzles as a result of its dimensional security and pureness.
Its use in electrical automobile (EV) inverters as a semiconductor substratum is swiftly expanding, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Dopes and Sustainability
Continuous research study focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which show pseudo-ductile actions, improved sturdiness, and kept toughness over 1200 ° C– excellent for jet engines and hypersonic automobile leading sides.
Additive production of SiC using binder jetting or stereolithography is progressing, making it possible for complex geometries previously unattainable with typical creating approaches.
From a sustainability viewpoint, SiC’s long life reduces replacement regularity and lifecycle emissions in industrial systems.
Recycling of SiC scrap from wafer slicing or grinding is being established with thermal and chemical recovery processes to redeem high-purity SiC powder.
As sectors push towards greater performance, electrification, and extreme-environment operation, silicon carbide-based ceramics will stay at the forefront of advanced products engineering, linking the space in between architectural strength and practical convenience.
