1. Material Features and Structural Style
1.1 Make-up and Crystalline Phases of Alumina

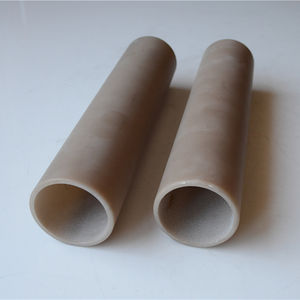

( Alumina Ceramic Tubes)
Alumina (Al â O TWO) ceramic tubes are mostly made from high-purity aluminum oxide, with pureness levels typically varying from 90% to 99.8%, relying on the desired application.
The leading crystalline stage in fully dense, high-temperature sintered tubes is α-alumina (diamond), which displays a trigonal crystal framework and remarkable thermodynamic stability.
This phase change from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina happens over 1100 ° C and leads to a thick, interlacing microstructure that provides impressive mechanical toughness and chemical resistance.
Greater purity qualities (â„ 99.5%) make best use of hardness, use resistance, and dielectric efficiency, while lower-purity solutions might include secondary stages like mullite or glazed grain boundary stages to lower price or dressmaker thermal development.
The capability to manage grain dimension, porosity, and phase structure during processing enables engineers to adjust alumina tubes for specific useful demands across diverse industrial domains.
1.2 Mechanical, Thermal, and Electrical Properties
Alumina ceramic tubes show a special combination of physical buildings that make them vital in demanding engineering settings.
With a Vickers firmness going beyond 1500 HV, they are highly resistant to abrasion and disintegration, surpassing most metals and polymers in wear-prone systems.
Their compressive stamina can get to 2000 MPa, enabling structural use under high mechanical tons, while flexural toughness commonly ranges from 300 to 500 MPa, relying on density and surface coating.
Thermally, alumina keeps stability up to 1700 ° C in oxidizing ambiences, with a reduced coefficient of thermal expansion (~ 8 ppm/K), adding to superb thermal shock resistance when appropriately designed.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to steels or aluminum nitride, it suffices for many high-temperature applications where electric insulation and architectural integrity are prioritized.
Electrically, alumina is an exceptional insulator with volume resistivity > 10 Âč⎠Ω · cm and high dielectric stamina (> 15 kV/mm), making it optimal for electric feedthroughs, sensing unit real estates, and high-voltage insulation.

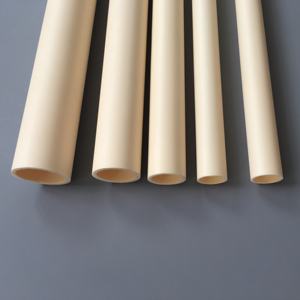

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Shaping and Forming Techniques
The manufacturing of alumina ceramic tubes entails sophisticated creating approaches tailored to accomplish exact measurements, wall density uniformity, and surface area high quality.
Usual techniques consist of extrusion, isostatic pressing, and slip spreading, each fit to various dimension varieties and efficiency demands.
Extrusion is extensively made use of for long, straight tubes with regular cross-sections, where a plasticized alumina paste is forced through a die and cut to length prior to drying and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) applies uniform stress from all instructions to small eco-friendly bodies, reducing distortion and boosting density homogeneity.
Slip spreading, including the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold, is excellent for complicated or large-diameter geometries with variable wall thickness.
After developing, tubes go through mindful drying to prevent cracking, followed by binder exhaustion and high-temperature sintering (1500– 1650 ° C )to accomplish complete densification and dimensional stability.
2.2 Ending Up and Quality Control
Post-sintering procedures such as centerless grinding, lapping, and brightening are utilized to achieve tight resistances, smooth surface coatings, and accurate inner and external sizes.
Resistances as tight as ± 0.01 mm are attainable for critical applications in semiconductor processing or logical instrumentation.
Surface roughness can be lowered to Ra < 0.1 ”m, minimizing particle trapping and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom settings.
Non-destructive screening approaches– consisting of ultrasonic assessment, X-ray radiography, and dye penetrant screening– ensure structural stability and absence of splits or spaces.
Dimensional metrology making use of coordinate determining machines (CMM) or laser scanning confirms compliance with style specs, especially for custom-made or high-volume manufacturing runs.
3. Functional Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
Among one of the most engaging advantages of alumina ceramic tubes is their capability to stand up to extreme thermal and chemical problems where steels and polymers fail.
They continue to be dimensionally stable and mechanically durable in continuous solution at temperatures above 1500 ° C, making them suitable for furnace linings, thermocouple security sheaths, and radiant heating unit tubes.
Their inertness to thaw steels (e.g., aluminum, zinc, and non-ferrous alloys), molten salts, and many acids (other than hydrofluoric and warm phosphoric acid) enables usage in metallurgical and chemical processing devices.
In oxidizing and minimizing ambiences, alumina does not break down or catalyze undesirable responses, maintaining process purity in semiconductor and glass production.
This chemical inertness additionally stops contamination in high-purity fluid dealing with systems, including those utilized in pharmaceutical and food handling industries.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma environments, alumina tubes serve as shielding obstacles that maintain circuit integrity under high voltage and raised temperature.
They are made use of in high-intensity discharge (HID) lights, where they consist of ionized gases at temperatures exceeding 1000 ° C while holding up against electric potentials of several kilovolts.
In plasma etching and deposition systems, alumina tubes act as dielectric windows or gas circulation components, standing up to ion barrage and thermal cycling without cracking or outgassing.
Their low dielectric loss and high arc resistance prevent electric tracking and failure, guaranteeing long life span in switchgear and power transmission parts.
These homes are vital in preserving process security and equipment integrity in advanced manufacturing and power systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Commercial Processing Solutions
Alumina ceramic tubes are integral to a variety of industrial processes that demand longevity under severe conditions.
In thermal handling, they function as protective sheaths for thermocouples and burner in kilns, furnaces, and heat therapy tools, protecting delicate components from destructive atmospheres and mechanical wear.
In liquid handling, they move aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits rapid home heating and cooling cycles without failing, a crucial benefit in cyclic commercial procedures.
In glass manufacturing, alumina tubes assist molten glass circulations and support forming devices, resisting disintegration from viscous, high-temperature melts.
4.2 Advanced Technologies and Future Integration
Beyond conventional industrial usages, alumina tubes are discovering new functions in advanced modern technologies.
In semiconductor fabrication, ultra-pure alumina tubes are used in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metal contamination must be minimized.
In medical gadgets, biocompatible alumina tubes serve as insulating elements in medical tools, dental implants, and analysis sensing units.
Study is checking out functionalized alumina tubes with ingrained sensing units or conductive traces for wise structural tracking in aerospace and power systems.
Additive production (3D printing) of alumina is emerging as a method to create complicated tube geometries with internal networks or graded compositions, making it possible for next-generation heat exchangers and microreactors.
As sectors press toward greater effectiveness, cleaner procedures, and higher dependability, alumina ceramic tubes remain to progress as making it possible for elements in the framework of modern technology.
In summary, alumina ceramic tubes stand for a mature yet dynamically progressing course of crafted products, combining extraordinary thermal, mechanical, and electric performance in a solitary inorganic avenue.
Their flexibility throughout severe settings ensures their ongoing significance in both developed commercial systems and emerging sophisticated applications.
