1. The Scientific research and Framework of Alumina Ceramic Products
1.1 Crystallography and Compositional Variants of Aluminum Oxide

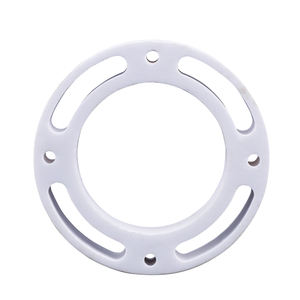

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from light weight aluminum oxide (Al two O FOUR), a substance renowned for its extraordinary equilibrium of mechanical strength, thermal security, and electrical insulation.
One of the most thermodynamically steady and industrially appropriate phase of alumina is the alpha (α) stage, which crystallizes in a hexagonal close-packed (HCP) structure coming from the corundum family members.
In this setup, oxygen ions form a dense lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites, resulting in an extremely steady and robust atomic structure.
While pure alumina is in theory 100% Al Two O THREE, industrial-grade products typically have small portions of additives such as silica (SiO TWO), magnesia (MgO), or yttria (Y TWO O THREE) to control grain development throughout sintering and enhance densification.
Alumina ceramics are identified by pureness levels: 96%, 99%, and 99.8% Al ₂ O four prevail, with higher purity correlating to boosted mechanical residential or commercial properties, thermal conductivity, and chemical resistance.
The microstructure– specifically grain dimension, porosity, and stage distribution– plays an essential role in identifying the last performance of alumina rings in solution environments.
1.2 Trick Physical and Mechanical Properties
Alumina ceramic rings show a suite of properties that make them essential in demanding industrial setups.
They possess high compressive toughness (approximately 3000 MPa), flexural toughness (usually 350– 500 MPa), and outstanding solidity (1500– 2000 HV), allowing resistance to wear, abrasion, and deformation under load.
Their low coefficient of thermal development (approximately 7– 8 × 10 ⁻⁶/ K) ensures dimensional stability throughout broad temperature level ranges, minimizing thermal anxiety and fracturing during thermal biking.
Thermal conductivity ranges from 20 to 30 W/m · K, depending upon purity, permitting modest warmth dissipation– enough for lots of high-temperature applications without the requirement for active cooling.

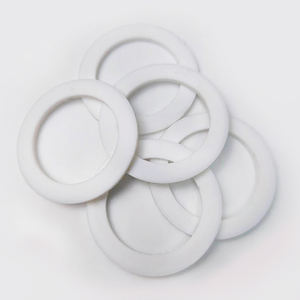

( Alumina Ceramics Ring)
Electrically, alumina is an exceptional insulator with a volume resistivity going beyond 10 ¹⁴ Ω · cm and a dielectric strength of around 10– 15 kV/mm, making it excellent for high-voltage insulation parts.
In addition, alumina shows excellent resistance to chemical assault from acids, alkalis, and molten steels, although it is at risk to attack by strong alkalis and hydrofluoric acid at elevated temperatures.
2. Manufacturing and Precision Design of Alumina Rings
2.1 Powder Handling and Forming Methods
The production of high-performance alumina ceramic rings starts with the choice and prep work of high-purity alumina powder.
Powders are normally manufactured using calcination of light weight aluminum hydroxide or with progressed approaches like sol-gel processing to achieve great particle size and narrow dimension distribution.
To create the ring geometry, numerous forming techniques are used, including:
Uniaxial pushing: where powder is compressed in a die under high pressure to form a “environment-friendly” ring.
Isostatic pushing: using uniform pressure from all directions making use of a fluid medium, leading to greater thickness and even more consistent microstructure, specifically for facility or huge rings.
Extrusion: suitable for long round forms that are later on cut right into rings, commonly made use of for lower-precision applications.
Shot molding: made use of for elaborate geometries and tight resistances, where alumina powder is blended with a polymer binder and injected into a mold.
Each method affects the final density, grain alignment, and problem distribution, necessitating mindful procedure choice based upon application requirements.
2.2 Sintering and Microstructural Advancement
After shaping, the green rings undergo high-temperature sintering, normally between 1500 ° C and 1700 ° C in air or regulated atmospheres.
Throughout sintering, diffusion systems drive fragment coalescence, pore elimination, and grain growth, resulting in a fully dense ceramic body.
The price of home heating, holding time, and cooling down profile are precisely managed to avoid cracking, bending, or exaggerated grain development.
Additives such as MgO are typically presented to prevent grain boundary mobility, leading to a fine-grained microstructure that enhances mechanical stamina and reliability.
Post-sintering, alumina rings may undertake grinding and washing to attain limited dimensional resistances ( ± 0.01 mm) and ultra-smooth surface area finishes (Ra < 0.1 µm), crucial for securing, birthing, and electrical insulation applications.
3. Functional Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively made use of in mechanical systems because of their wear resistance and dimensional security.
Key applications consist of:
Securing rings in pumps and valves, where they resist erosion from unpleasant slurries and corrosive fluids in chemical handling and oil & gas industries.
Bearing components in high-speed or destructive environments where metal bearings would weaken or require regular lubrication.
Guide rings and bushings in automation devices, providing low rubbing and long life span without the requirement for greasing.
Use rings in compressors and generators, minimizing clearance in between revolving and fixed components under high-pressure conditions.
Their ability to preserve efficiency in completely dry or chemically aggressive settings makes them superior to several metallic and polymer choices.
3.2 Thermal and Electric Insulation Functions
In high-temperature and high-voltage systems, alumina rings function as critical shielding components.
They are employed as:
Insulators in heating elements and heating system elements, where they support repellent cables while holding up against temperatures above 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, stopping electric arcing while maintaining hermetic seals.
Spacers and assistance rings in power electronic devices and switchgear, isolating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their low dielectric loss and high failure strength guarantee signal honesty.
The combination of high dielectric strength and thermal security permits alumina rings to function reliably in settings where organic insulators would degrade.
4. Material Developments and Future Outlook
4.1 Composite and Doped Alumina Equipments
To additionally enhance efficiency, scientists and producers are developing sophisticated alumina-based composites.
Examples consist of:
Alumina-zirconia (Al Two O SIX-ZrO TWO) composites, which display boosted fracture sturdiness through change toughening mechanisms.
Alumina-silicon carbide (Al two O ₃-SiC) nanocomposites, where nano-sized SiC bits enhance firmness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain border chemistry to improve high-temperature toughness and oxidation resistance.
These hybrid products extend the functional envelope of alumina rings into more extreme conditions, such as high-stress dynamic loading or quick thermal cycling.
4.2 Emerging Fads and Technological Combination
The future of alumina ceramic rings depends on smart assimilation and accuracy manufacturing.
Patterns consist of:
Additive production (3D printing) of alumina parts, enabling complicated inner geometries and customized ring styles formerly unreachable via typical methods.
Practical grading, where make-up or microstructure varies throughout the ring to enhance performance in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking by means of ingrained sensors in ceramic rings for predictive upkeep in industrial machinery.
Raised usage in renewable energy systems, such as high-temperature fuel cells and focused solar energy plants, where product dependability under thermal and chemical stress is paramount.
As sectors require greater effectiveness, longer lifespans, and minimized upkeep, alumina ceramic rings will continue to play a critical function in making it possible for next-generation design remedies.
