1. Material Principles and Microstructural Layout
1.1 Structure and Crystallographic Stability of Alumina
(Alumina Ceramic Nozzles)
Alumina (Al Two O SIX), specifically in its alpha stage, is a fully oxidized ceramic with a corundum-type hexagonal close-packed structure, providing outstanding thermal security, chemical inertness, and mechanical stamina at raised temperatures.
High-purity alumina (usually 95– 99.9% Al â O THREE) is favored for nozzle applications due to its very little pollutant content, which reduces grain boundary weakening and enhances resistance to thermal and chemical degradation.
The microstructure, containing fine, equiaxed grains, is crafted during sintering to reduce porosity and make the most of density, directly influencing the nozzle’s disintegration resistance and structural honesty under high-velocity liquid flow.
Ingredients such as MgO are usually presented in trace total up to prevent unusual grain growth during sintering, guaranteeing a consistent microstructure that sustains lasting integrity.
1.2 Mechanical and Thermal Features Relevant to Nozzle Efficiency
Alumina ceramics display a Vickers firmness going beyond 1800 HV, making them very resistant to abrasive wear from particulate-laden liquids, a critical characteristic in applications such as sandblasting and rough waterjet cutting.
With a flexural toughness of 300– 500 MPa and a compressive stamina over 2 GPa, alumina nozzles maintain dimensional stability under high-pressure operation, normally ranging from 100 to 400 MPa in commercial systems.
Thermally, alumina keeps its mechanical residential or commercial properties up to 1600 ° C, with a low thermal expansion coefficient (~ 8 Ă 10 â»â¶/ K) that gives exceptional resistance to thermal shock– essential when revealed to rapid temperature changes throughout startup or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate localized heat without inducing thermal gradients that can bring about breaking, balancing insulation and heat administration requirements.
2. Manufacturing Processes and Geometric Accuracy
2.1 Forming and Sintering Techniques for Nozzle Construction
The manufacturing of alumina ceramic nozzles begins with high-purity alumina powder, which is processed into an eco-friendly body utilizing techniques such as cool isostatic pressing (CIP), injection molding, or extrusion, relying on the preferred geometry and set size.

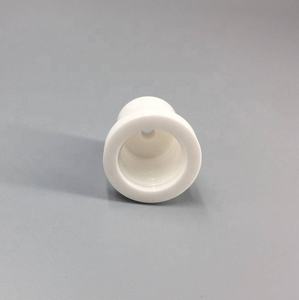

( Alumina Ceramic Nozzles)
Cold isostatic pushing applies consistent stress from all instructions, generating an uniform density circulation essential for reducing issues during sintering.
Shot molding is used for complicated nozzle forms with interior tapers and great orifices, allowing high dimensional precision and reproducibility in mass production.
After shaping, the green compacts undergo a two-stage thermal therapy: debinding to remove natural binders and sintering at temperatures in between 1500 ° C and 1650 ° C to attain near-theoretical density via solid-state diffusion.
Precise control of sintering environment and heating/cooling rates is important to stop bending, cracking, or grain coarsening that can jeopardize nozzle performance.
2.2 Machining, Sprucing Up, and Quality Assurance
Post-sintering, alumina nozzles often need precision machining to attain limited resistances, especially in the orifice region where flow dynamics are most sensitive to surface finish and geometry.
Ruby grinding and lapping are utilized to fine-tune inner and outside surface areas, attaining surface roughness worths listed below 0.1 ”m, which reduces flow resistance and stops bit buildup.
The orifice, usually ranging from 0.3 to 3.0 mm in diameter, have to be without micro-cracks and chamfers to make certain laminar flow and regular spray patterns.
Non-destructive testing techniques such as optical microscopy, X-ray inspection, and stress cycling tests are utilized to confirm structural honesty and efficiency uniformity prior to release.
Custom-made geometries, including convergent-divergent (de Laval) accounts for supersonic flow or multi-hole varieties for follower spray patterns, are significantly produced utilizing advanced tooling and computer-aided layout (CAD)-driven manufacturing.
3. Functional Advantages Over Alternative Nozzle Products
3.1 Superior Erosion and Deterioration Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits far greater resistance to rough wear, especially in environments involving silica sand, garnet, or various other tough abrasives made use of in surface area prep work and cutting.
Steel nozzles weaken rapidly because of micro-fracturing and plastic contortion, needing constant substitute, whereas alumina nozzles can last 3– 5 times much longer, dramatically reducing downtime and functional prices.
Additionally, alumina is inert to most acids, alkalis, and solvents, making it appropriate for chemical splashing, etching, and cleansing processes where metallic elements would rust or pollute the fluid.
This chemical stability is specifically valuable in semiconductor production, pharmaceutical processing, and food-grade applications needing high purity.
3.2 Thermal and Electrical Insulation Feature
Alumina’s high electrical resistivity (> 10 Âč⎠Ω · cm) makes it optimal for use in electrostatic spray coating systems, where it protects against charge leakage and ensures uniform paint atomization.
Its thermal insulation capability enables safe operation in high-temperature splashing atmospheres, such as flame spraying or thermal cleaning, without warmth transfer to bordering elements.
Unlike steels, alumina does not militarize unwanted chemical reactions in reactive fluid streams, preserving the integrity of delicate formulas.
4. Industrial Applications and Technological Effect
4.1 Roles in Abrasive Jet Machining and Surface Treatment
Alumina ceramic nozzles are vital in unpleasant blasting systems for corrosion removal, paint removing, and surface texturing in automotive, aerospace, and building and construction industries.
Their ability to maintain a regular orifice diameter over expanded usage ensures consistent unpleasant speed and influence angle, directly affecting surface finish high quality and process repeatability.
In rough waterjet cutting, alumina concentrating tubes guide the high-pressure water-abrasive mix, standing up to abrasive forces that would rapidly break down softer products.
4.2 Usage in Additive Production, Spray Finish, and Liquid Control
In thermal spray systems, such as plasma and flame splashing, alumina nozzles straight high-temperature gas circulations and liquified fragments onto substratums, gaining from their thermal shock resistance and dimensional stability.
They are also utilized in precision spray nozzles for agricultural chemicals, inkjet systems, and gas atomization, where wear resistance guarantees long-lasting application accuracy.
In 3D printing, especially in binder jetting and material extrusion, alumina nozzles supply great powders or thick pastes with marginal clogging or wear.
Arising applications consist of microfluidic systems and lab-on-a-chip devices, where miniaturized alumina parts use sturdiness and biocompatibility.
In recap, alumina ceramic nozzles stand for a crucial crossway of materials scientific research and industrial engineering.
Their extraordinary combination of solidity, thermal security, and chemical resistance allows reliable efficiency in some of one of the most demanding fluid handling settings.
As commercial procedures push toward higher pressures, finer tolerances, and much longer service intervals, alumina porcelains continue to set the requirement for durable, high-precision flow control parts.
