1. Intro to Oil Immersed Transformers
In the intricate web of our modern-day electric grid, transformers play a crucial role, calmly tipping voltage backwards and forwards to make certain electrical energy can be transferred efficiently over cross countries and distributed securely to our homes and industries. Among the numerous kinds offered, the oil submersed transformer stands as a testimony to tried and tested integrity and resilience. For decades, these workhorses have actually formed the backbone of power systems worldwide.
An oil submersed transformer is a type of electric transformer that utilizes a customized protecting oil as both a coolant and a protecting tool. This style is primarily used for medium to high-power applications, making it a foundation of electric framework. This overview delves deep into the globe of oil immersed power transformers and oil submersed distribution transformers, discovering their modern technology, applications, and their progressing duty in an age of digitalization and renewable energy.
1.1 What is an Oil Submersed Transformer?
At its core, an oil submersed transformer contains a magnetic core and copper or aluminum windings housed inside a sealed storage tank full of protecting oil. The main function of the oil is twofold:
1. Insulation: The oil has high dielectric toughness, successfully protecting the high-voltage windings from the transformer’s core and based tank. This prevents brief circuits and electrical failures.
2. Cooling: As the transformer runs, the windings create significant warm because of I ² R losses. The flowing oil absorbs this warmth, convects it to the transformer’s tank wall surfaces, and dissipates it right into the bordering air. Bigger units often include radiators or fins to enhance the surface area for more reliable cooling.
This dual-purpose use of oil makes the oil submersed transformer remarkably effective and robust, capable of taking care of high lots and enduring transient overloads much better than numerous dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these systems are oil immersed transformers, they offer distinctive features within the power system network. Recognizing the difference is important.
An oil immersed power transformer is a heavyweight, usually made use of in transmission networks at producing stations and major substations. Their primary role is to “step-up” the voltage created at the nuclear power plant to incredibly high levels (e.g., 138 kV, 230 kV, 500 kV and over) for reliable long-distance transmission, and to “step-down” the voltage at receiving substations for more distribution. They are defined by their very high power rankings (usually surpassing 100 MVA), complex building, and on-load tap changers for voltage guideline.
An oil involved circulation transformer, on the various other hand, executes the last action in the power distribution chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the low voltages (e.g., 400/230 V) made use of by industrial and domestic customers. You generally locate them on utility poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power scores (typically as much as 2,500 kVA), and are created for optimal efficiency at reduced, much more consistent loads.

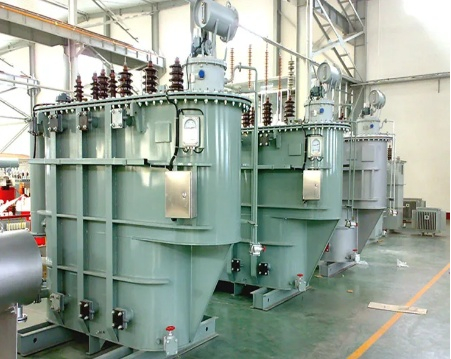

(Oil immersed power transformer)
2. Secret Advantages of Oil Submersed Transformers
The enduring appeal of the oil submersed transformer is not unexpected. It supplies a suite of engaging advantages that make it the preferred choice for many demanding applications.
2.1 Superior Air Conditioning and Overload Ability
The superior thermal capability of oil contrasted to air enables an oil submersed power transformer to handle and dissipate warm far more effectively. This equates to a greater overload capability. During periods of optimal electrical energy demand, an oil immersed transformer can handle short-lived overloads without receiving damages, a vital feature for preserving grid stability. The oil’s blood circulation ensures even warmth distribution, protecting against local hot spots that can break down insulation gradually.
2.2 Improved Insulation and Long Service Life
The combination of premium mineral oil and diligently impregnated paper insulation creates a dielectric system of phenomenal stamina. This durable insulation system safeguards the transformer from voltage surges and transients, adding to a functional life expectancy that can extend to 30-40 years or more with appropriate upkeep. The sealed tank likewise shields the inner components from wetness, dirt, and other atmospheric contaminants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is usually the most economical option. The materials made use of– mineral oil, steel storage tank, and copper/aluminum windings– supply a desirable equilibrium of efficiency and expense. The high effectiveness of these transformers, particularly at their ranked lots, causes lower power losses over their life time, resulting in significant price financial savings for utility business and large industrial users.
3. Hot Subjects and Future Trends
The globe of oil immersed transformers is not fixed. It is continuously evolving to satisfy brand-new challenges and integrate with modern-day innovations.
3.1 Biodegradable and Fireproof Oils
Environmental and security worries are driving a substantial shift far from standard mineral oil. The market is swiftly taking on oil submersed transformers full of eco-friendly esters (artificial or all-natural). These oils supply a higher fire point (making them K-class fireproof), are much less toxic, and are readily biodegradable, dramatically minimizing the ecological influence in instance of a leakage. This pattern is making oil immersed distribution transformers much safer for installment in metropolitan locations and eco delicate places.
3.2 Combination with Smart Grids and IoT
The contemporary oil engaged power transformer is becoming a smart node in the wise grid. Sensing units are being incorporated to keep track of vital criteria in real-time, consisting of:
Dissolved Gas Analysis (DGA): Spotting mistake gases generated within the oil to anticipate incipient mistakes.
Temperature Tracking: Tracking top-oil and hotspot temperatures.
Lots and Power Quality Monitoring.
This data, transmitted by means of IoT (Internet of Things) systems, allows anticipating maintenance, prevents unexpected blackouts, and maximizes transformer usage and lifespan.
3.3 Sustaining the Renewable Energy Transition
The international push for renewables is producing brand-new demand for oil immersed transformers. Massive solar farms and wind power setups call for robust oil submersed power transformers to tip up the produced voltage to transmission degrees. Furthermore, the recurring nature of renewables areas greater stress on grid parts, and the tried and tested integrity and overload capability of oil immersed transformers make them optimal for this important duty.
4. Choice and Maintenance Finest Practices
Choosing the ideal transformer and maintaining it appropriately is key to a dependable power system.
4.1 Exactly how to Choose the Right Oil Immersed Transformer
Choosing in between an oil submersed power transformer and an oil submersed circulation transformer relies on the application. Trick factors to consider consist of:
1. Voltage Level and kVA Ranking: Match the transformer’s requirements to your system’s requirements.
2. Application: Transmission substation, industrial plant, or business distribution.
3. Place: Indoor vs. outdoor, ecological problems, and fire safety and security regulations (which might influence the choice of shielding oil).
4. Efficiency Criteria: Abide by regional performance requirements like DOE (USA) or EU CoC (Europe).
5. Budget plan: Think about both the initial resources expense and the total expense of possession, consisting of losses.

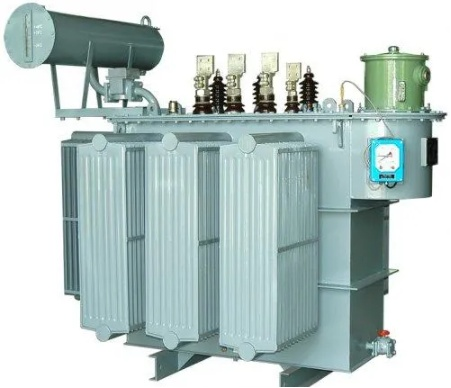

(Oil immersed distribution transformer)
4.2 Important Upkeep for Long Life
Aggressive upkeep is crucial for any oil immersed transformer. A comprehensive program must include:
1. Routine Oil Tasting and Testing: Regular DGA and screening of dielectric toughness and dampness content are the most efficient means to evaluate the health of the transformer.
2. Bushing and Insulation Examination: Aesthetic look for splits, contamination, or leakages.
3. Tap Changer Upkeep: Routine inspection and maintenance of on-load or off-load faucet changers.
4. Maintain it Tidy and Dry: Making certain the container exterior, radiators, and rests are tidy and useful.
The oil immersed transformer, in its roles as both a high-capacity oil immersed power transformer and an ubiquitous oil immersed circulation transformer, continues to be an irreplaceable part of our global energy infrastructure. Its tested design, combined with continuous technologies in protecting fluids and digital monitoring, guarantees it will remain to be a trustworthy, effective, and intelligent option for powering our globe for decades to come. As we develop the grids of the future, integrating more renewables and electronic intelligence, the durable and adaptable oil submersed transformer will certainly be at the heart of it.
