1. Material Fundamentals and Architectural Qualities of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

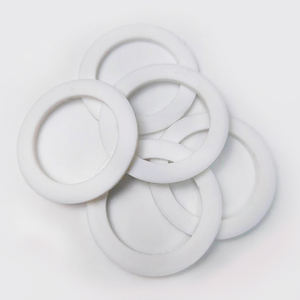

(Alumina Ceramic Substrates)
Alumina ceramic substratums, largely composed of light weight aluminum oxide (Al ₂ O SIX), work as the foundation of contemporary electronic packaging due to their remarkable balance of electric insulation, thermal security, mechanical toughness, and manufacturability.
One of the most thermodynamically secure stage of alumina at high temperatures is corundum, or α-Al ₂ O ₃, which crystallizes in a hexagonal close-packed oxygen latticework with aluminum ions occupying two-thirds of the octahedral interstitial sites.
This thick atomic plan imparts high hardness (Mohs 9), exceptional wear resistance, and solid chemical inertness, making α-alumina suitable for harsh operating atmospheres.
Commercial substratums normally have 90– 99.8% Al Two O ₃, with small enhancements of silica (SiO ₂), magnesia (MgO), or uncommon planet oxides made use of as sintering help to promote densification and control grain growth throughout high-temperature processing.
Greater pureness qualities (e.g., 99.5% and over) display exceptional electrical resistivity and thermal conductivity, while lower purity versions (90– 96%) offer economical services for much less demanding applications.
1.2 Microstructure and Flaw Design for Electronic Reliability
The performance of alumina substratums in electronic systems is critically based on microstructural uniformity and issue minimization.
A fine, equiaxed grain structure– generally ranging from 1 to 10 micrometers– guarantees mechanical stability and lowers the likelihood of split propagation under thermal or mechanical stress.
Porosity, specifically interconnected or surface-connected pores, need to be decreased as it weakens both mechanical stamina and dielectric performance.
Advanced processing strategies such as tape casting, isostatic pressing, and regulated sintering in air or controlled environments enable the production of substratums with near-theoretical density (> 99.5%) and surface roughness listed below 0.5 µm, necessary for thin-film metallization and cable bonding.
Additionally, pollutant partition at grain limits can lead to leakage currents or electrochemical migration under prejudice, requiring rigorous control over basic material purity and sintering problems to make certain long-lasting integrity in moist or high-voltage environments.
2. Manufacturing Processes and Substratum Fabrication Technologies
( Alumina Ceramic Substrates)
2.1 Tape Spreading and Environment-friendly Body Processing
The manufacturing of alumina ceramic substrates begins with the preparation of a highly distributed slurry including submicron Al ₂ O four powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is refined via tape spreading– a constant method where the suspension is spread over a moving carrier movie utilizing an accuracy doctor blade to achieve consistent density, normally in between 0.1 mm and 1.0 mm.
After solvent evaporation, the resulting “green tape” is flexible and can be punched, pierced, or laser-cut to form through holes for vertical affiliations.
Numerous layers might be laminated to develop multilayer substratums for complex circuit combination, although most of industrial applications use single-layer configurations due to set you back and thermal expansion factors to consider.
The eco-friendly tapes are after that very carefully debound to remove organic additives with regulated thermal disintegration prior to last sintering.
2.2 Sintering and Metallization for Circuit Assimilation
Sintering is conducted in air at temperatures in between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore removal and grain coarsening to achieve complete densification.
The direct shrinkage during sintering– usually 15– 20%– have to be specifically forecasted and compensated for in the style of eco-friendly tapes to make sure dimensional precision of the last substratum.
Complying with sintering, metallization is put on form conductive traces, pads, and vias.
Two main methods dominate: thick-film printing and thin-film deposition.
In thick-film innovation, pastes including steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a lowering atmosphere to form durable, high-adhesion conductors.
For high-density or high-frequency applications, thin-film procedures such as sputtering or evaporation are utilized to deposit adhesion layers (e.g., titanium or chromium) complied with by copper or gold, making it possible for sub-micron pattern using photolithography.
Vias are filled with conductive pastes and discharged to establish electrical affiliations in between layers in multilayer styles.
3. Functional Features and Efficiency Metrics in Electronic Systems
3.1 Thermal and Electric Habits Under Functional Stress And Anxiety
Alumina substratums are prized for their favorable combination of moderate thermal conductivity (20– 35 W/m · K for 96– 99.8% Al Two O ₃), which enables effective heat dissipation from power gadgets, and high quantity resistivity (> 10 ¹⁴ Ω · cm), guaranteeing marginal leakage current.
Their dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is secure over a broad temperature level and frequency array, making them ideal for high-frequency circuits approximately a number of ghzs, although lower-κ materials like aluminum nitride are chosen for mm-wave applications.
The coefficient of thermal expansion (CTE) of alumina (~ 6.8– 7.2 ppm/K) is fairly well-matched to that of silicon (~ 3 ppm/K) and specific packaging alloys, decreasing thermo-mechanical anxiety during tool procedure and thermal cycling.
Nevertheless, the CTE mismatch with silicon remains a worry in flip-chip and straight die-attach configurations, frequently calling for compliant interposers or underfill materials to reduce fatigue failure.
3.2 Mechanical Effectiveness and Environmental Longevity
Mechanically, alumina substrates display high flexural strength (300– 400 MPa) and outstanding dimensional security under lots, enabling their use in ruggedized electronic devices for aerospace, automotive, and industrial control systems.
They are resistant to vibration, shock, and creep at raised temperature levels, preserving structural integrity up to 1500 ° C in inert atmospheres.
In moist environments, high-purity alumina shows very little moisture absorption and excellent resistance to ion migration, guaranteeing lasting dependability in exterior and high-humidity applications.
Surface area firmness likewise shields against mechanical damages throughout handling and assembly, although care needs to be taken to stay clear of side damaging because of intrinsic brittleness.
4. Industrial Applications and Technological Impact Throughout Sectors
4.1 Power Electronics, RF Modules, and Automotive Solutions
Alumina ceramic substratums are ubiquitous in power digital modules, including insulated gate bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they supply electric isolation while assisting in warmth transfer to warmth sinks.
In superhigh frequency (RF) and microwave circuits, they function as service provider systems for hybrid incorporated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks because of their steady dielectric buildings and low loss tangent.
In the vehicle sector, alumina substratums are utilized in engine control devices (ECUs), sensor packages, and electrical vehicle (EV) power converters, where they endure high temperatures, thermal cycling, and exposure to harsh fluids.
Their integrity under rough conditions makes them crucial for safety-critical systems such as anti-lock braking (ABS) and advanced driver help systems (ADAS).
4.2 Clinical Gadgets, Aerospace, and Arising Micro-Electro-Mechanical Solutions
Past customer and industrial electronic devices, alumina substrates are employed in implantable medical gadgets such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are critical.
In aerospace and defense, they are made use of in avionics, radar systems, and satellite communication components due to their radiation resistance and stability in vacuum settings.
Moreover, alumina is progressively utilized as a structural and shielding platform in micro-electro-mechanical systems (MEMS), consisting of stress sensing units, accelerometers, and microfluidic devices, where its chemical inertness and compatibility with thin-film processing are helpful.
As electronic systems continue to demand higher power thickness, miniaturization, and reliability under severe conditions, alumina ceramic substratums continue to be a cornerstone product, linking the void between performance, price, and manufacturability in advanced digital packaging.
